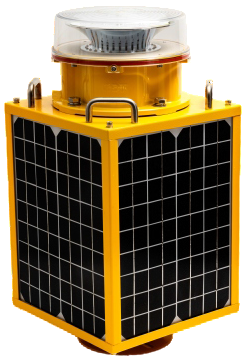

Medium Intensity Solar Aviation Obstruction Light Type B

Aviation Obstruction Light Item Code: OZ-OBL-02-SMB

UOM : Pcs

Product Details

Specification

Synchronization mode	GPS
Light Source	LED
Emitting color	Red
Vertical output degree	≥ 3°
Horizontal output degree	360°
Flash rate	20~60 flash/min(adjustable)
LED Life span	≥100,000 hours
Photosensitivity	0~500cd/ ㎡（adjustable)
Intensity	2000±25%cd
Background Luminance	<50 cd/m²
Beam Angle	360° horizontal / ≥3° vertical
Reserve	10-15 days cloudy/rainy
Weight	2.2Kg
Materials	Body: aluminum alloy, Lens: High strength PC, Reflector: ABS vacuum coating
Work voltage	AC85-265V
Power consumption	≤ 2 W
Anti surge capability	IEC61000-4-5 3kA, IEC61000-4-5 6kV
Ambient temperature	-40℃ ~ +55℃
Ambient humidity	0% ~ 95% (no condensing）
Wind level	240Km/h
Ingress Protection	IP 67
Weight	2.2Kg
Materials	Body: aluminum alloy, Lens: High strength PC, Reflector: ABS vacuum coating
Work voltage	DC12V ( Others also Available)
Power consumption	≤ 8 W
Anti surge capability	IEC61000-4-5 3kA, IEC61000-4-5 6kV

Solar Panel

Battery

Lamp shade of light adopts PC with anti-UV which is high efficiency light transmission up to 90%, quite high impact resistance and fits the bad environment very well.
The body of the light adopts SUS304 stainless steel, House of the light is made of aluminum alloy and painted by spraying plastic. The structure is high strength, resistance to corrosion.
Special battery for solar energy, free maintenance and high reliability, lifetime more than 3 years.
Based on the single chip computer micro power control, could control the charge and discharge precisely.
Mild steel change glass Polycrystalline silicon solar panels, energy efficiency high (> 18%), lifetime more than 20 years.
Using Fresnel lens optical design, range further.
Further use reflector optical design, visual distance, the angle more accurately, thoroughly eliminates the light pollution.
Light source adopts LED with long lifespan up to 100,000hrs, lower power consumption and high efficiency.
Used the photosensitive probe fit for the natural light spectrum curve, automatic control light intensity level.
The circuit of the light has surge protection whose lightning proof ability is in 7.5KA/5 times, Imax 15KA so that the light is suitable for a harsh environment.
Integral structure, protection level of IP65.
Synchronizing GPS function is available.
