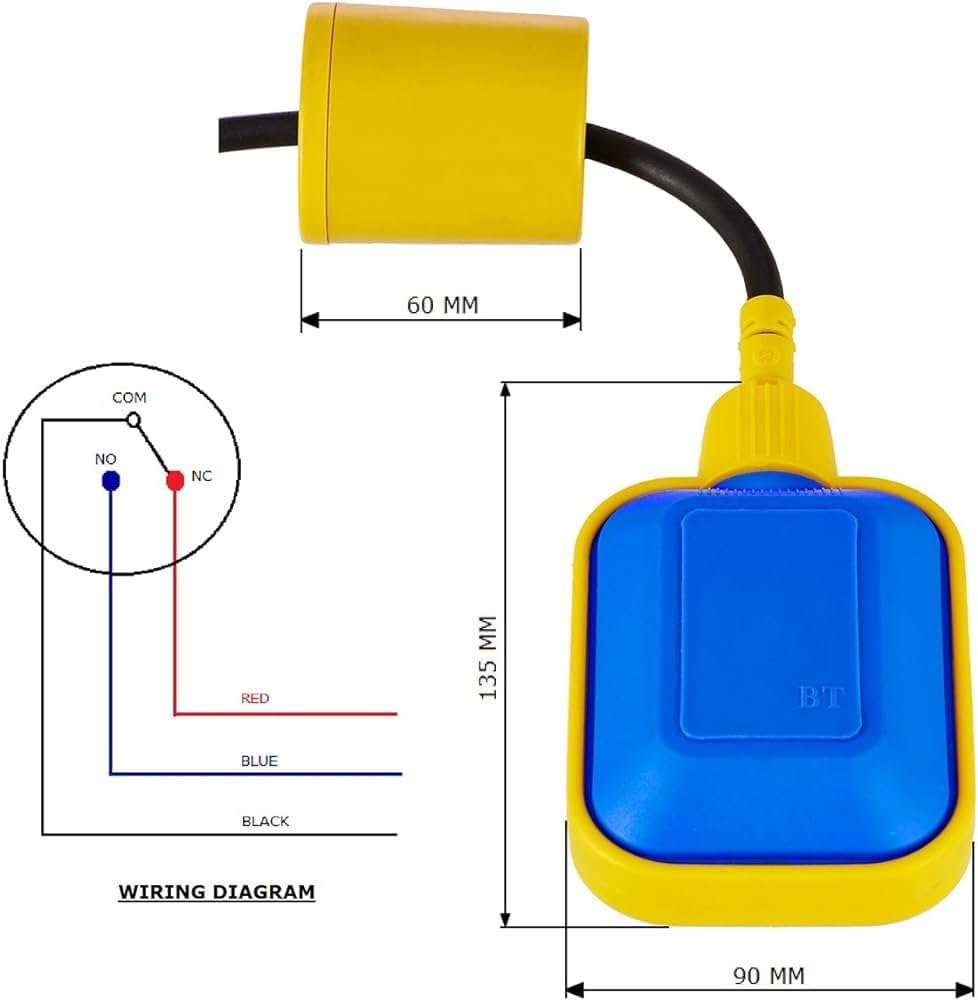

Float Switch
Sanitary Item Code: ITEM/1018
A float switch is a reliable device used to automatically control liquid levels in tanks, pumps, and water systems.
Applications:
Water tanks
Overhead an underground tanks
Sump pumps
Sewage and drainage systems
Industrial liquid control
Features:
Automatic level control
Easy installation
Durable and long-lasting
Suitable for water and non-corrosive liquids
Helps prevent overflow and dry running of pumps
| Float Switch | A float switch is a reliable device used to automatically control liquid levels in tanks, pumps, and water systems. It works by turning equipment ON or OFF when the liquid reaches a certain level. Brand: KRAFEN origin: Germany |
| Item Name | Float switch - Rectangle Shape |
| Rated voltage | 230V / 380V |
| Rated Frequency | 50Hz/60Hz |
| Rated current | 15A / 8A |
| Working temperature | 0 to 70ºC |
| Mechanical endurance | ≥100,000 times |
| Electric endurance | ≥ 50,000 times |
| Protection grade | IP68 |
| Standard cable length | 2m 3m 5m 8m 10m 20m or as customer requirement |
| Working pressure | Max.1bar |
| Circuit breaking capacity | Directly KW with 250V |
| Float | Polypropylene |
| Cable | Polypropylene Jacket |
| Counter Weight | Polypropylene Sealed Housing |
| Cable Size ( Optional ) | PVC (3x0.5mm2), (3x0.75mm2), (3x1.0m2) |
